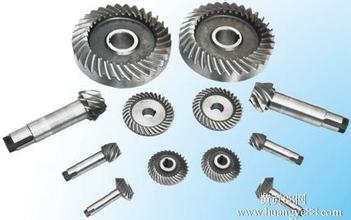

Also called the bevel gear bevel gear, widely used in printing equipment, automobile differential, and also can be used in sluice, locomotives, ships, power plants, steel mills, railway track detection etc.. Bevel gear with respect to the metal gear, affordable, long wear life, strong function.

The characteristics of bevel gears:

1 strong resistance to chemical and corrosive

2 noise reduction and shock absorption

3 long life, high load bearing capacity

4 light weight, low cost

5 easy to shape, good lubrication

Quenching principle of bevel gear

Bevel gear load is large, the centering accuracy requirement is high, very high technical requirements. In the work process, it is inevitable to bear great friction, the best way is to bevel gear quenching heat treatment, so that it can improve the hardness, wear resistance and service life.

The purpose of quenching is the cold austenite martensite or bainite and martensite or bainite, and cooperate with different temperature tempering, to a substantial increase in steel strength, hardness, wear resistance, fatigue strength and toughness to meet different use requirements of all kinds of machinery spare parts and tools. It can also meet the special physical and chemical properties of some special steel by quenching.

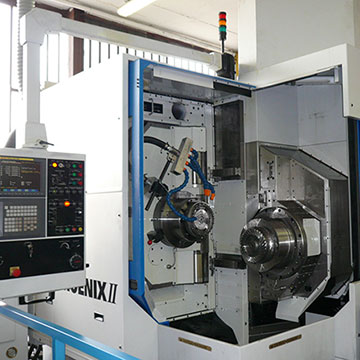

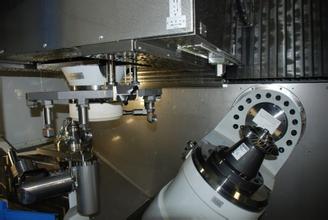

Gleason Phoenix 280G bevel gear grinder accommodating gear ranging up to 280 mm in diameter. Has a rigid Phoenix as a whole column to cast away from the advanced polymer composites, the machine said to achieve high thermal stability, and to provide damping characteristics. High-speed, direct drive spindle combined with rapid change of wheels, pavilions and cooling head design, and automatic segmentation stock and at the same time truing and dressing, to provide faster floor to floor times. The automatic split was installed near the spindle gear, to ensure consistent quality. The pre finished gear tooth position to provide accurate and reliable stock division to automatically determine the device, reduce the operation errors.

Grinding mill working chamber lack of guardrail, wires and pipes to collect the scrap, keep it clean low preventive maintenance, the company said. The wheel dressing, for example, work out of the chamber telescope to reduce wiring and piping are usually found in there. Set no tools required to complete, including fixture, cooling and grinding head. The cooling head is also equipped with a removable hand and a laser guidance device, can be more effective, repeatable part on the part of tube alignment pieces, and wheel hydraulic release.

This machine can be equipped with a FANUC 30i or SIEMENS 740D CNC and function, designed to simplify the installation, maintenance and use of the robot and the Longmen Gleason automation software integrated user friendly.

1, straight bevel gear is a kind of most basic bevel gear, the processing is simple, but the transmission accuracy is too poor, instantaneous transmission than not, just as General de change the direction of transmission, institutions than does not have strict requirement on the speed and transmission, such as shaper workbench lifting, operating shaft, suitable for low velocity bodies.

2, bevel gear is in straight bevel gear based on the modified type, relative to the straight bevel gear of some disadvantages have been improved, such as: instantaneous transmission ratio is relatively accurate, high transmission precision a little, transfer efficiency is higher than that of the straight bevel gear, popular to say, compared with straight tooth bevel gear, drive to the relaxed a little, but mesh adaptation will due to the reasons for making very good grasp the best and suitable in speed is not too high institutions, and the need to lubricate.

3, the efficiency of spiral bevel gear is best, performance parameters of the best, at the bottom of the automobile drive shaft and the bridge [tooth pack] (is the bridge in the middle of the circular), which will have a set of spiral bevel gear pair, the performance are as follows:

Has the advantages of high transmission efficiency, low friction resistance, instantaneous transmission ratio, accurate transmission torque, especially suitable for high-speed transmission

Disadvantages: high cost, due to manufacturing and installation, the coincidence degree is difficult to grasp the best, need good lubrication, oil bath lubrication is the best
